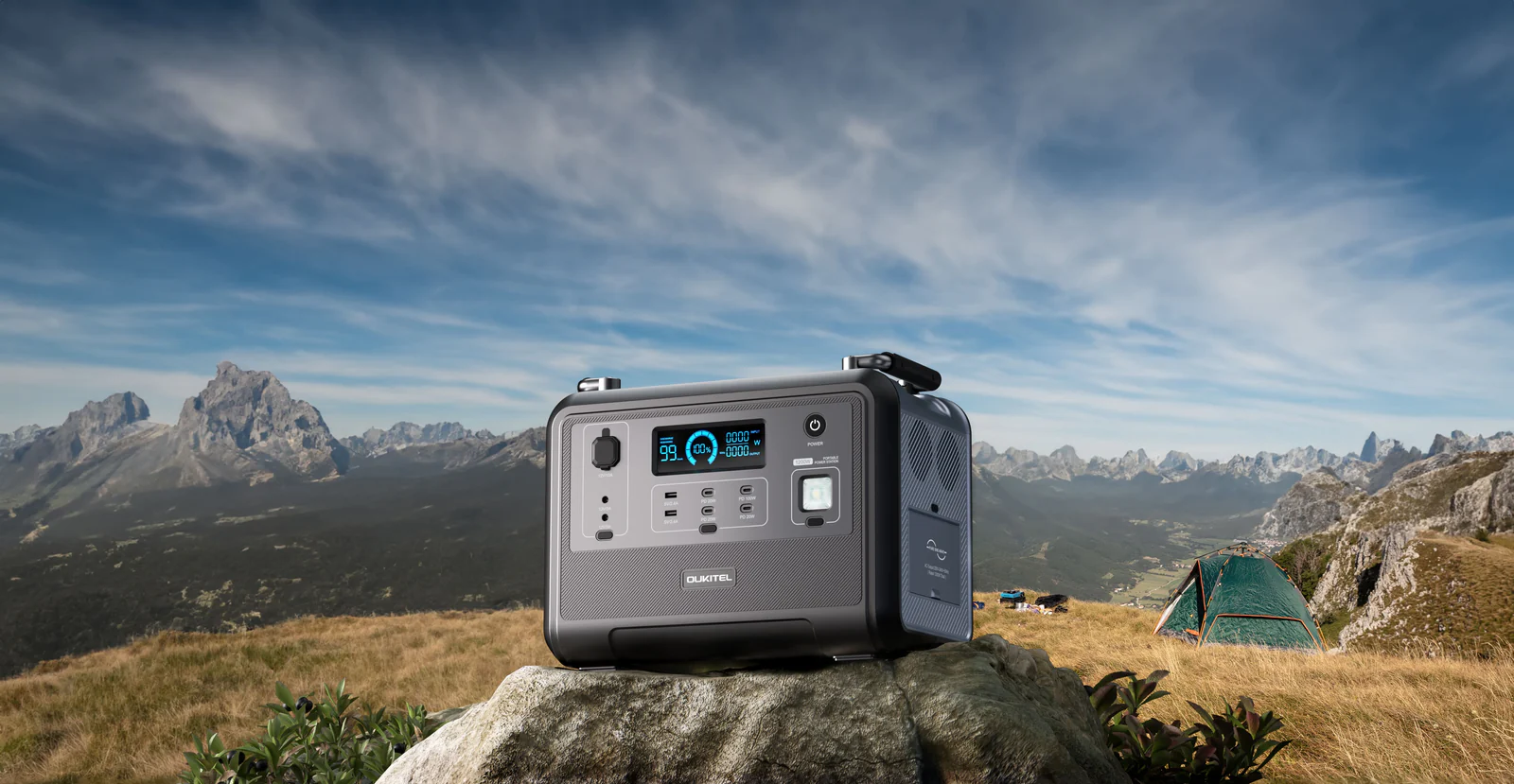

240 V Portable Power Station: What to Know

If you’re looking into backup energy or off-grid systems that need to power larger appliances, heavy tools, or full household circuits, you’ve likely come across the term 240 v portable power station. This refers to a portable battery-based unit capable of delivering 240 V AC output (or supporting split-phase 120/240 V systems).

In this guide we’ll walk you through what 240V output means, how split-phase works, what specs to focus on, and whether a 240V power station is the right investment for your setup.

What 240 V output & split-phase mean

240 V output

In many homes and serious appliance setups (especially in the U.S.), large appliances like dryers, ovens, central air units, and well-pumps run on 240 V. A “240 v portable power station” means the unit is capable of supplying 240 V AC output—either via a dedicated 240V outlet or via a system that supports both 120 V and 240 V. For example, one product description says “Delivers both 120V and 240V outputs with up to 4000W in a single unit.”

Split-phase power

In North America many residences use “split-phase” power: two hot lines each at ~120 V to neutral, but 240 V between the two hot lines. This allows the same service to run both 120 V circuits and 240 V circuits.
 A portable power station that supports split-phase can therefore supply both standard 120V loads (lights, electronics) and 240V loads (dryer, AC) simultaneously or sequentially.

Why it matters

If you only buy a station with 120 V output, you may be limited to small appliances and electronics. If you need to run heavy 240 V loads (air conditioner, full kitchen, workshop), a 240V capable system becomes far more useful. As the EcoFlow blog explains:

“If you’ve been searching for a split-phase power source that can power your 120V and 240V appliances … large-scale appliances require a tremendous amount of energy.”

What to look for in a 240 V capable portable power station

When shopping for a 240V power station, here are the key specifications and features to check:

1. Continuous output (Watts) & surge capability

Even if a station supports 240 V, you must check how many watts it can deliver at that voltage continuously (e.g., 2,000 W, 4,000 W) and how high the surge rating is (for motors, compressors, etc).
For example: a unit claiming “up to 4,000W” at 120/240V.
You want margin so that your 240 V loads can start safely and run without straining the system.

2. Battery capacity (Wh) & usable energy

Running 240 V loads often means larger draw; you’ll need a larger battery capacity (Wh) to get meaningful runtime. Watch for units with enough Wh, not just inverter size.

3. 240 V outlet types & compatibility

Check what outlet the station provides: some provide NEMA 14-50, NEMA L14-30, or other 240 V outlets. One example: “1× NEMA 14-50 (Max. 6,000W) … 120V/240V dual-voltage.”
Also check wiring compatibility (split-phase vs single line) if you are integrating with home circuits.

4. Split-phase support

If your house uses 120/240V split-phase and you want to power both types of loads, make sure the station explicitly supports split-phase. The EcoFlow article walks through how split-phase works and why you’d need it.

5. Recharge methods & flexibility

Because 240 V loads burn energy fast, you’ll want fast recharge: AC wall input, solar input, perhaps generator or vehicle DC. Some stations support dual-charging (solar + AC) to speed up recharge.
One forum discussion shows users seeking units that output 240V and input 120V simultaneously.

6. Safety & installation

When working with 240 V and split-phase, make sure the wiring, outlet, and installation meet code. For home backup use this may involve a transfer switch or dedicated outlet. Some units mention UPS-type switchover <10ms.
Also check cooling, ventilation, and portability if used indoors.

Practical use-cases and runtime examples

Here are scenarios where 240 V portable power stations shine — and how to estimate runtime.

Use-case A: Home backup for 240V appliances

Suppose you want to power a 240V dryer (~3,000 W), or a central AC unit (~2,500 W running, higher surge), during outages. A 240V station rated ~4,000W continuous, battery ~4,000Wh could run the AC for about 1-2 hours of heavy load (4,000Wh ÷ 2,500W ≈ 1.6h). If load drops after startup, runtime extends.
The EcoFlow blog indicates units can support “a 3-ton central AC” via 120/240V output.

Use-case B: Workshop or tools

If you have a 240V welder, compressor, or large saw requiring 240V, you’ll need 240V output. Estimate load maybe 2,000W. With battery 3,000Wh: runtime ~1.5h (3000Wh ÷ 2,000W ≈ 1.5h). Still shorter than smaller loads but useful for intermittent tasks.

Use-case C: RV or van with 240V hookup

Some larger RVs or van builds may have 240V outlets (rare in North America, but possible in other regions). A 240V station allows you to plug into that panel and run larger appliances. The split-phase support becomes useful if you also use 120V loads.
One review of a 240V capable station noted “allows us to plug directly into generator input and power the house … all of our 120V and 240V loads.”

Runtime estimation method

Use the familiar runtime formula:

Runtime (hours) ≈ (Battery Wh × efficiency) ÷ Load Watts

If your station is 4,000Wh usable and the load is 1,000W at 240V: ~4 hours. If load is 2,000W: ~2 hours. Always add margin (~20-30%) for inefficiencies, surge, cycling.
For split-phase, if you’re running loads across both legs (120V + 240V), account for total wattage across both.

Pros & cons of 240 V portable power stations

Pros:

• Ability to power large appliances and full circuits, not just small electronics.
• Supports both 120V and 240V loads (in split-phase capable models) → versatile for home/back-up use.
• Clean, emission-free alternative to a generator for 240V loads.
• Portable and flexible compared to fixed home battery systems.

Cons:

• Higher cost (both purchase and battery capacity) than 120V-only systems.
• Larger battery needed for meaningful runtime at high loads; size/weight become significant.
• Recharge time and solar input may become limiting if loads and duration are large.
• For full house or very large loads you may still need generator or fixed system.
• Wiring, installation, code compliance for 240V split-phase may add complexity/cost.

Frequently Asked Questions

What is a 240 v portable power station?

A “240 v portable power station” is a battery-based power unit capable of delivering 240 volts AC output, often supporting both 120V and 240V via split-phase or dedicated 240V outlets. It enables powering larger appliances or circuits that require 240 V rather than just small 120 V loads.

Do I always need split-phase?

If you have large 240 V appliances (dryer, oven, central AC) or circuits, yes. Split-phase lets you power both 120V and 240V loads from one station. If your loads are only 120V (lights, laptops, small fridge) you may not need split-phase support. According to the EcoFlow article:

“When do you need 240V split-phase power? … large-scale appliances require a larger energy output.”

How many watts do I need for 240 V appliances?

It depends on the appliance. Many 240 V loads draw thousands of watts (2,000W-4,000W or more). Choose a station whose continuous output exceeds the running watts, and whose surge rating covers startup. Example: a unit “up to 4000W” continuous at 240V.

How long will it run?

Runtime depends on battery size (Wh) and load (W). Use:

Runtime ≈ (Battery Wh × efficiency) / Load W

For instance: 3,000Wh battery, 2,000W load → ~1.5 hours. But if load cycles or drops, you may extend time. Always build in a margin (≈20-30%) for real-world conditions.

Can I recharge while using?

Yes, good units support pass-through or simultaneous use and recharge. Solar + AC dual charge is often supported to keep the station topped up while driving or during daylight. Forum threads show interest in 240V units supporting input while outputting 240V.

Are 240 V portable power stations safe for home use?

Yes—if properly installed and used. Ensure correct wiring, transfer switch if integrating with house circuits, proper outlet types (NEMA 14-50/L14-30) and follow installation guides. Because you’re using higher voltage, risks (overload, wiring fault) increase, so treat it with the same care as other house electrical gear.

Final thoughts

If you're looking beyond small-load backup or camping gear, a 240 v portable power station is a compelling option for powering large appliances, full circuits, or high-wattage tools from a portable battery system. It bridges the gap between traditional generator backup and smaller power stations. When sizing one:

• Ensure you truly need 240 V output (large loads, bigger appliance set).
• Choose a unit with sufficient continuous watts and surge capability.
• Invest in enough battery capacity (Wh) to get meaningful runtime.
• Confirm it supports split-phase if you need 120/240V together.
• Check recharge paths (solar/AC/vehicle) to maintain uptime.

If your loads are modest (mostly 120 V) and you don’t anticipate large appliances, a 120V-only station may suffice and save cost. But for heavy loads or full backup scenarios, 240 V capability opens up much more flexibility.
